WL BH CROSSING BLOCK

These are Wing Left Crossing block for BS95R Crossing and range from 1 in 4 to 1 in 18. We can also supply Wing Left Parallel wing blocks & wing Left Right hand splice / Left hand splice blocks

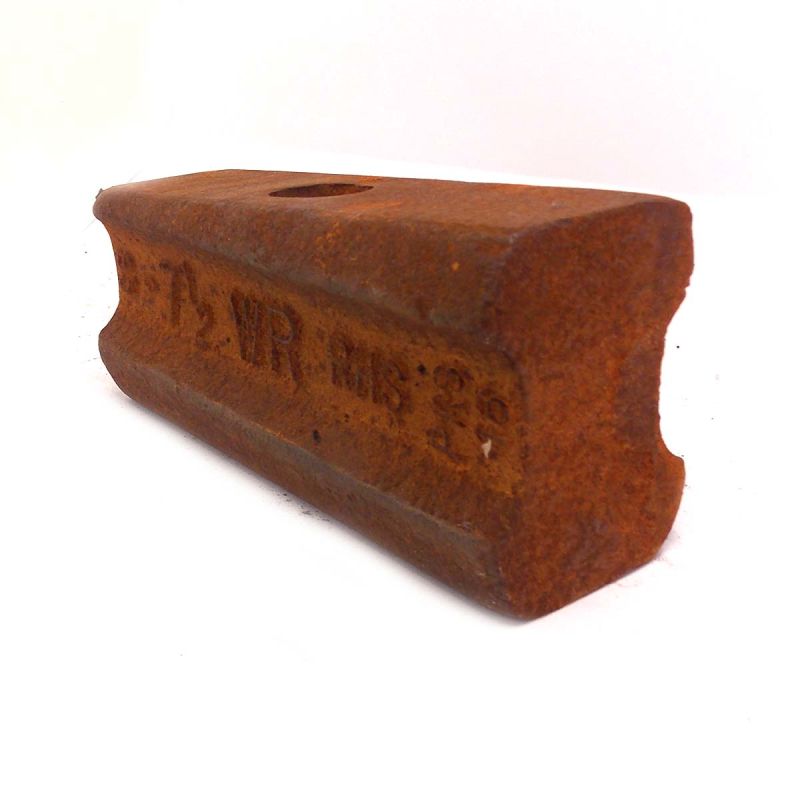

WR BH CROSSING BLOCK

These are Wing Right Crossing block for BS95R Crossing and range from 1 in 4 to 1 in 18. We can also supply Wing right Parallel wing blocks & wing right Left Hand splice / Right hand splice blocks

YELLOW FERRULE

These are placed into the holes on the baseplates/chairs to aide in securing the coach screw down onto the baseplate/chair (once tightened there should be a gap of 6-8mm between the coach screw & the chair)

YELLOW INSULATOR 432

These are used to between the rail, the chair & the rail clip, for insulating purposes

YELLOW INSULATORS 10mm

These are used to between the rail, the chair & the rail clip, for insulating purposes

95LB PAN PEAR FISHBOLT

These are used to hold the fishplates BS95R (pear holes) onto the rail to join the rail together

95LB SRS FISHBOLT

These are used to hold the fishplate (round hole) together through the rail

AL BH CROSSING BRACKET

These are used to attach the crossing to the Sleeper/ timber & are bolted through the crossing with 1 bolt these range from 1 in 4 to 1 in 18 crossings

AR BH CROSSING BRACKET

These are used to attach the crossing to the Sleeper/ timber & are bolted through the crossing with 1 bolt these range from 1 in 4 to 1 in 18 crossings

AS coach screw 5 1/2"

These are used to secure the baseplate/chair to the sleeper/timber

AS coach screw 6 3/8"

These are used to secure the baseplate/chair to the sleeper/timber

AXL BH CROSSING BLOCK

These are crossing block to wrap around the nose of the crossing the range from 1 in 4 to 1 in 18 crossing

AXR BH CROSSING BLOCK

These are crossing block to wrap around the nose of the crossing the range from 1 in 4 to 1 in 18 crossing

BH 2 3/8" CHECK CHAIR

These are used to connect BS95R check rail to BS95R running rail clearance range 1 3/4" to 3 1/16"

BH 1PL, 1PR CHAIR NEW

These are used at the back end of the switch assembly to hole the geometry of the turnout in position 'A' assemblies 1PLA - 2PLA & 1PRA - 2PRA, 'B' assemblies 1PLB - 2PLB 1PRB - 2PRB, 'C' assemblies 1PLC - 2PLC 1PRC - 2PRC, 'D' assemblies 1PLD - 2PLD 1PRD - 2PRD & 'E' assemblies 1PLE - 2PLE 1PRE - 2PRE

BH 3 1/16" CCL CHECK CHAIR

These are used to connect BS95R check rail to BS95R running rail at the start and the end of the check rail which has a bend flare end CCL & CCR chairs 3 1/16" clearance

BH 3PL, 3PR CHAIR NEW

These are used at the back end of the switch assembly to hole the geometry of the turnout in position 'A' assemblies 3PLA - 4PLA & 3PRA - 4PRA, 'B' assemblies 3PLB - 3PLB 3PRB - 4PRB, 'C' assemblies 3PLC - 5PLC 3PRC - 5PRC, 'D' assemblies 3PLD - 6PLD 3PRD - 6PRD & 'E' assemblies 3PLE - 9PLE 3PRE - 9PRE

BH FISHPLATE

These are used to joint 2 lengths of the same rail section togethe

10mm 8531 FASTCLIP PADS

These are to be placed between the rail & the baseplate

10mm 8531 FASTCLIP SLEEPER PAD

These are to be placed between the rail & the baseplate

10mm 8854 FASTCLIP PAD

These are to be placed between the rail & the baseplate

113LB PAN PEAR FISHBOLT

These are used to hold the fishplates 56e1 (pear holes) onto the rail to join the rail together

160mm 113LB FISHBOLT

These are used to hold the fishplates 56e1 (round holes) onto the rail to join the rail together

1810 BLACK CLIPS

These are used to hold the rail to the baseplate/sleeper with corrosion protection
